มินิ CNC งานหนัก Heavy duty-CNC HV-3040Z Desktop Mini 5 Axis CNC Router Machine for Sale

มินิ CNC งานหนัก Heavy duty

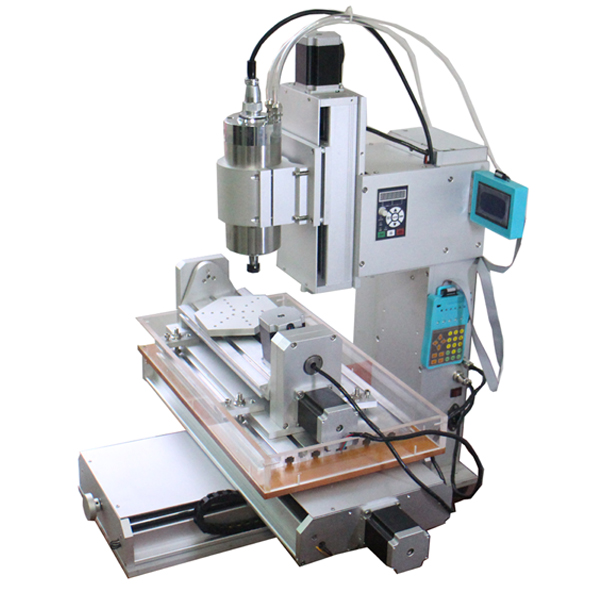

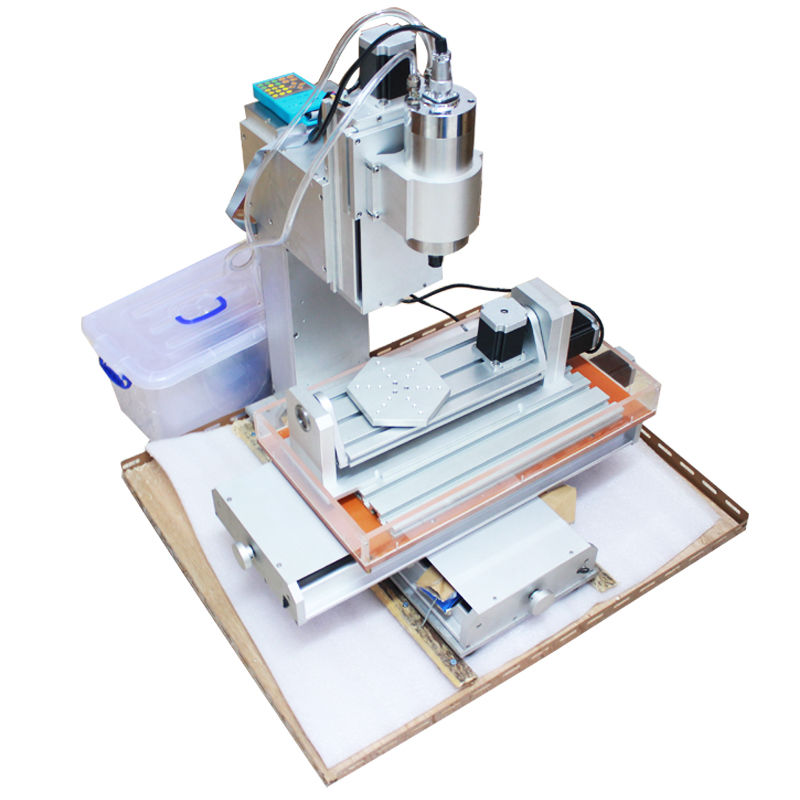

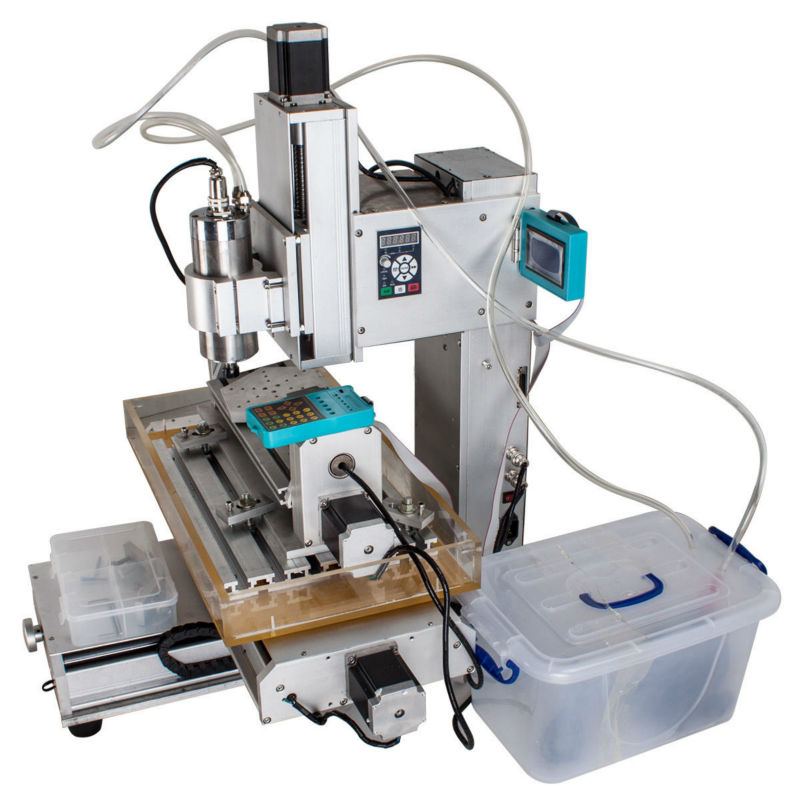

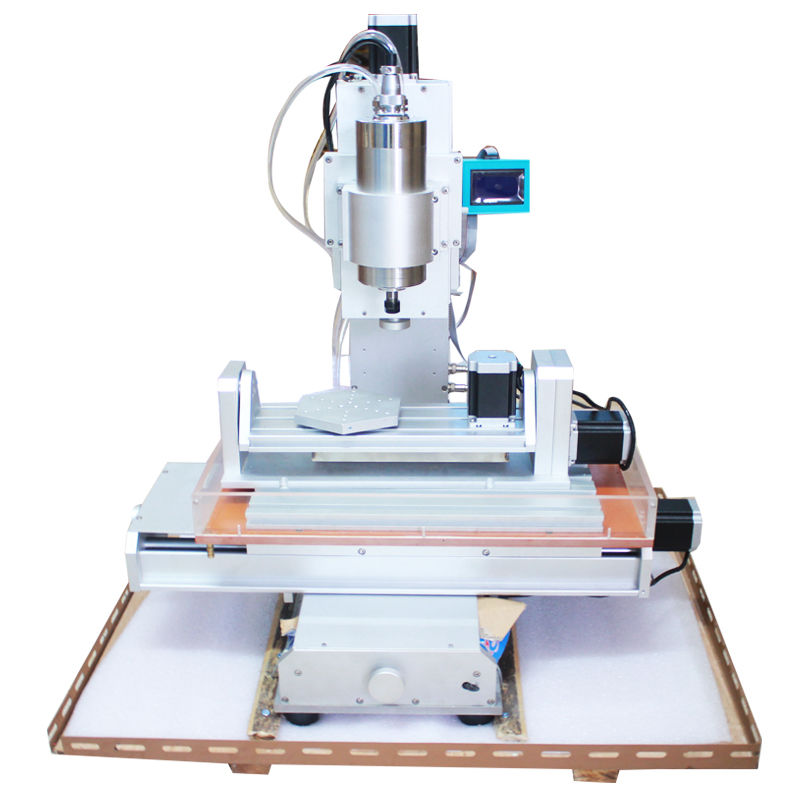

Heavy duty-3040 Desktop Mini 5 Axis CNC Router Machine for Sale

Latest Heavy duty-3040 5 Axis CNC Machine for sale. Price competitve from factory. Can be widely used.

 Main feature for HY-3040 Small DIY China 5 Axis CNC Machine

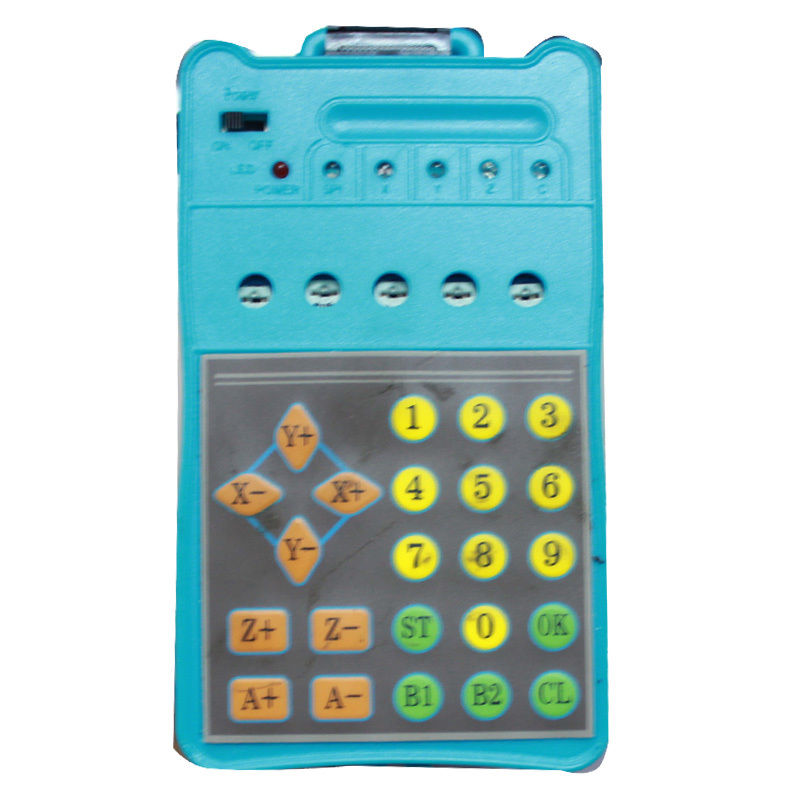

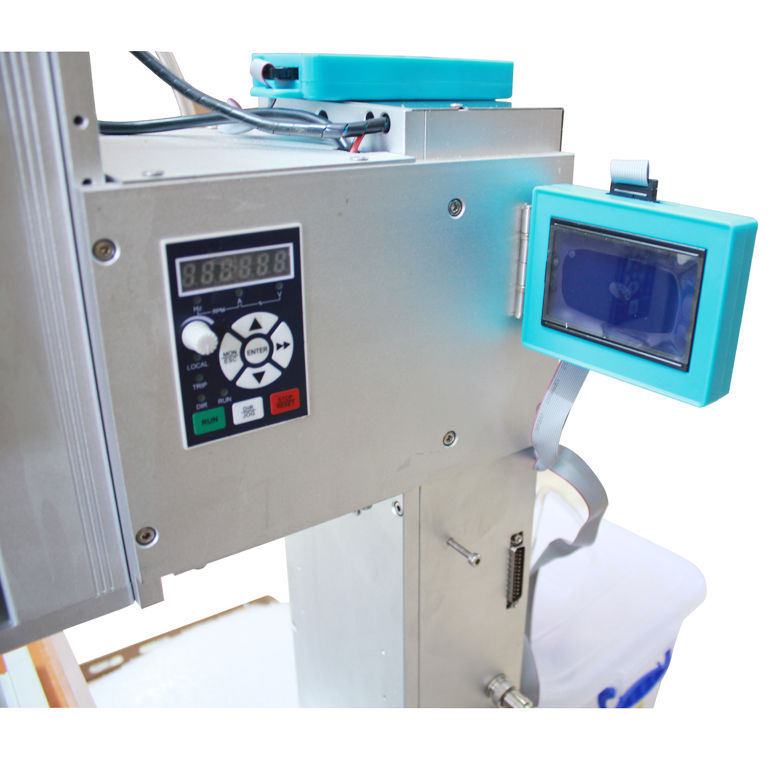

1. Integrated high-speed microcomputer intelligent control chip, can be equipped with external LCD monitor with hands, automatic detection of computer controlled automatic shield handle motion control functions, can simultaneously track digital recording of computer data and handle mobile data control.

2. The computer keeps track of the path, you can run once the computer processing of the data record-keeping process automatically repeats offline processing operation.

3.  Manually move the processing to save recorded track record, manually move the machine data and automatically reprocessed run manually move the path.

4.Manual data input processing path and enter the path to run automatically.

5. You can automatically complete the XYZ axis or Z axis of the knife, without complicated computer software operation control.

6. Max 5A stepper motor drive current, eight-speed adjustable.

7. Up to 16 segments, higher accuracy, run more smoothly.

8. Overload over-current over-temperature protection function, automatic semi-flow control, fully protect your computer and peripherals.

9. Bipolar constant current chopper drive motor low-speed non-creeping phenomenon, noise, non-resonant region.

10. Closed optical isolation, dual-stage signal processing, and fully protect your computers and devices.

Model5 Axis CNC Machine

Product demention                   520(H)X660(L)X580(W) mm

Effective work area                  240x340x100 mm

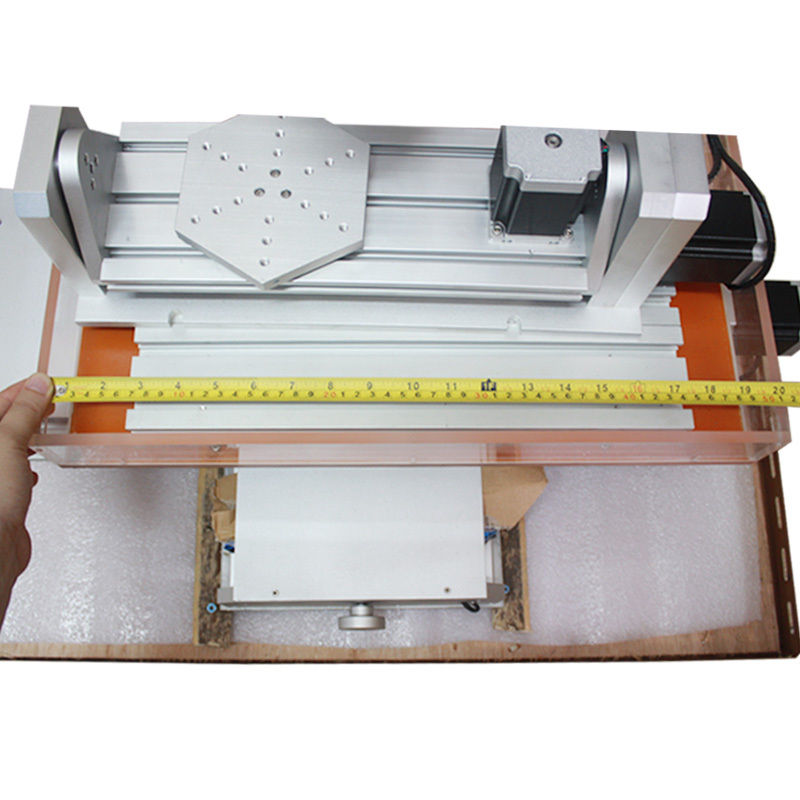

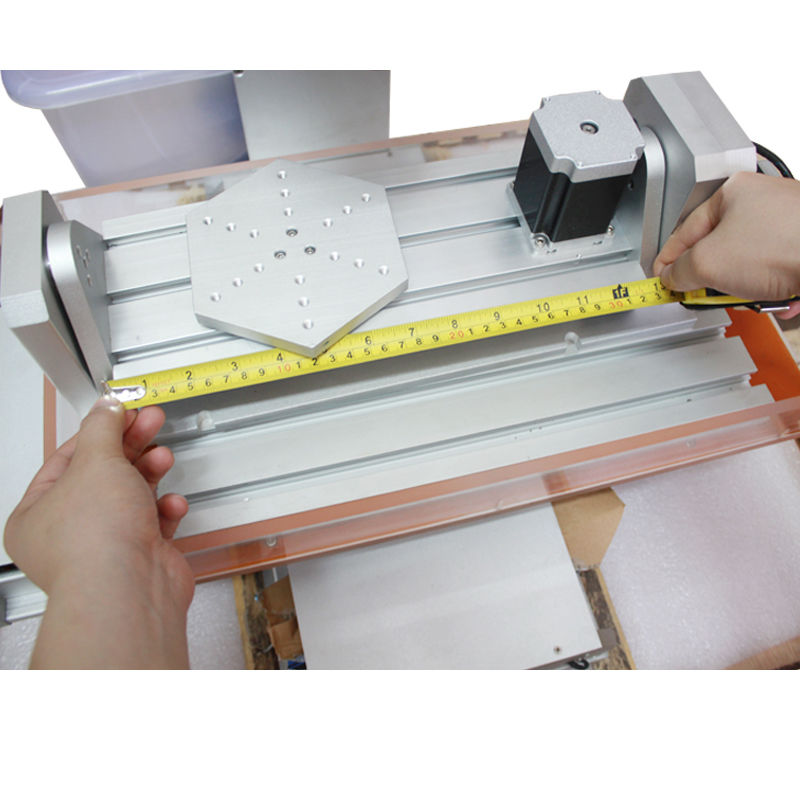

5th work area                           140mm ,can engrave 5 diffirent sides

High Precision                          ballscrew 1605

XYZ rail material                       Hard chrome shaft

XY rail diameter                        20mmZ rail diameter16mm

XYZ axis torque                         57*78  250 OZ/IN (2.2N/CM)4th and 5th

Torque                                       57*56 4th and 5th

transmission                              ratio1:6

Repeat positioning accuracy     0.01mm

Working precision                     0.02mm

Processing speed                     0-4000 mm/Min

A-axis B-axis rotation speed     0-180 rpm/min

XY table maximum                    load50kg

XY+A+B axis table maximum    load15kg

Tailgate material                       Stainless steel

Switching Power Supply          Integrated 24V 350W

Spindle power                          800 W water-cooled frequency spindle

Spindle converter                    1500w

Input Power                             220V / 110V power supply

Output Current                         Drive 4.5A (peak 5A)Drive motor57*78

stepper motors                         (two-phase 4 wire) Stepper Motor78*3.5A

Collet size                                 3/3.175/6mm if need others change into  ER11 first

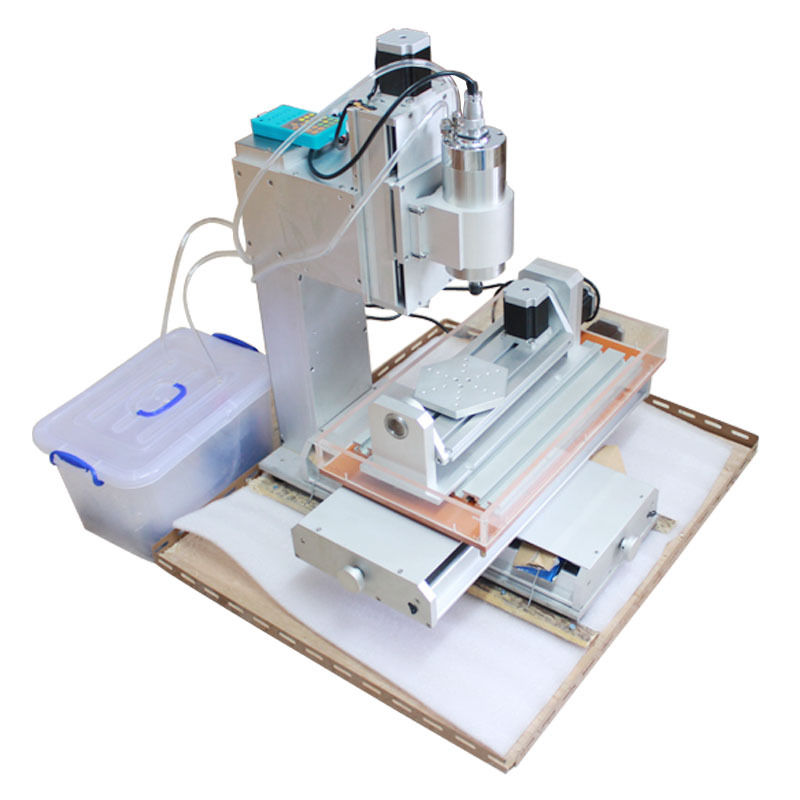

High efficiency                          Water Pump 55W，46.6L /Min

Weight90kg

Engraving material                   Metal,Brass, Acrylic, Wood, Aluminum, Stainless Steel
          (hardness less then 45 degree)

Support computer system        windowXP/window 7

Software                                  MACH3 3.04

4 Axis parameter setting          26.666/1000.2/300/5/5

How to connect                        with computer25 pin parallel port

Packing                                    Wooden box Outside packing78*66*82 (cm)

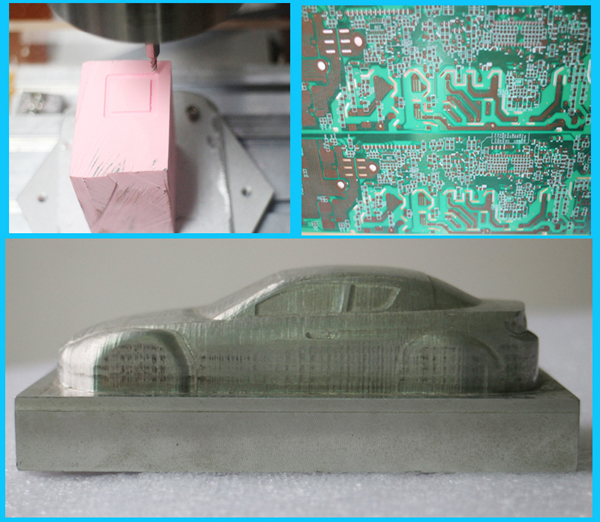

This HY-3040 Small DIY 5 Axis CNC Router

Machine can be widely to engraving diffirent materials such as wood, acrylic, aluminum, brass, metal, stainless steel and most of with hardness less then 45 degrees.

Safety standard wooden box  for express shipping and sea shipping
