Mini CNC 3020 4 Axis ชิ้นงาน X 200mm Y300 mm Z 45 mm 4 แกน Spindle 500W

Mini CNC 3020BS 4 Axis ชิ้นงาน X 200mm Y300 mm Z 50 mm 4 แกน Spindle 300W

 *** 3020T และ 3020ฺBS ปัจจุบันได้ obsolete ลายการผลิตชั่วคราว หากต้องการจัดซื้อรบกวน ติดเป็นกรณีไปครับ

1. 300W DC spindle

2. Ball Screw good precision

3. Mini size with 300×200mm work area

4. Steady and strong equiped with aluminum alloy frame materials

5. Mach 3 software is simple and intelligent,Can be controlled by computer

6. Emergency stop button enhance security

7. Spindle motor knob is useful for small positioning adjustment ,with steady and strong support structure.

8. Chrome shafts is not easy to deform, suitable for long time use.

9. For hobby and research use

10. Cheap and affordable cnc router

11. 110V/220V available

Technical details for this Cheap Affordable Mini CNC 3020/ CNC 3020T-DJ Router Engraver

Effective working travel 300(X)mm*200(Y)mm*45(Z)mm

Shape dimension 500*400*370mm

Max.workpiece dimension 300*200mm

Work table dimension 440*270mm

Frame materials aluminum alloy 6063 and 6061 the unique and dedicated mold extrusion profiles. let counterfeiters dwarfs

acceptable material thickness ≤60mm

Driving units X axis 1204 Double thread Trapezoidal Screw

Y axis 1204 Double thread Ball Screw

Z axis 1204 Double thread Ball Screw

Sliding units X axis Dia.16mm chrome plate shafts

Y axis Dia.20mm chrome plate shafts

Z axis Dia.13mm chrome plate shafts

Stepping motor type 57 two-phase 1.8A

Spindle motor Brand new 500w dc motor 1000~8000PRM/Min

Principal axis collet ER11/3.175 mm/6mm

Repeat accuracy 0.05mm

Spindle precision radial beat acuities 0.03 mm

Carving Instructions G code/TAB files/nc file/NCC files

Communication interface through parallel connection with computer

Software environment Windows xp

Maximum speed 0-4000mm/min

Carving speed 300-2500mm/min (different materials differ)

Control unit Toroidal transformer + PWM power supply module + TB6560 3axis drive board

Computer connection on board palrallel port

Command code G code

Acceptable software Mach3

Protection Emergency stop button

Operating Voltage AC110V/AC220V

Packing list for this Mini CNC 3020BS-DJ Router Engraver

1x CNC 3020/ CNC 3020BS machine body

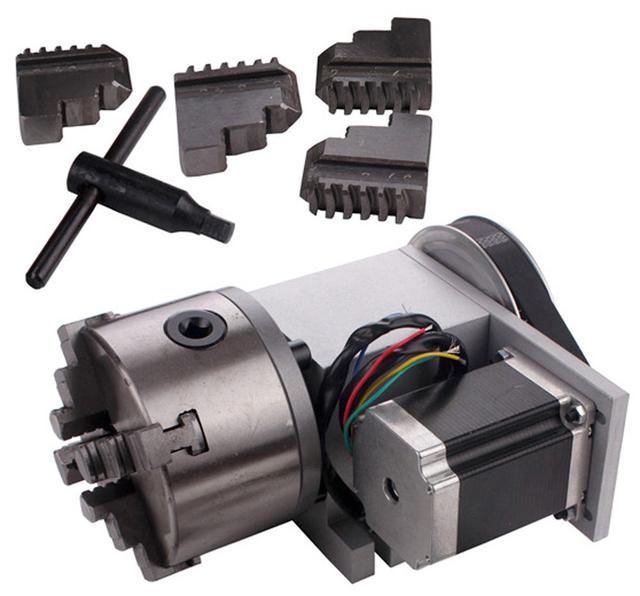

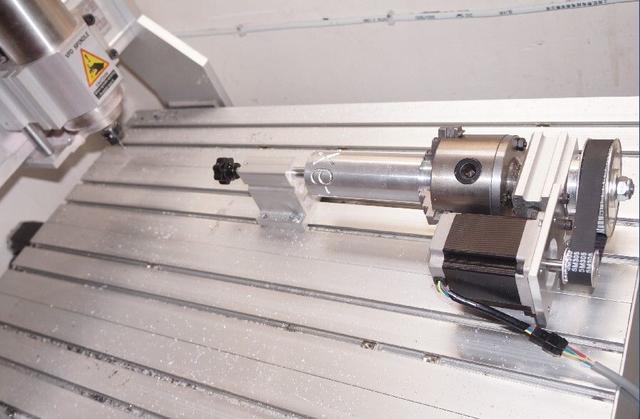

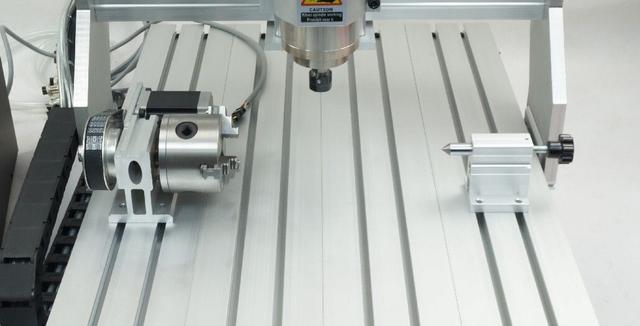

1x Rotary holder axis

1x Control box

1x Parallel port cable 25pin

2x Power cable

1x Tool box and tools

3x Axis motors

1x CD of manual and software MACH3

Packing: 1pc carton box (23kg)
