เครื่องตัดเลเซอร์ 100W Co2 USB Laser Cutter Laser Cutting Engraving Machine 1300 x 900 mm

Laser Cutter Cutting Machine Laser Engraver Engraving 1300*900mm

Laser Cutter X1390 (1300*900mm) Reci 100W CO2 Laser Tube with CE, FDA

New Controller with Color Screen and Reci 100W, Upgrade freely！

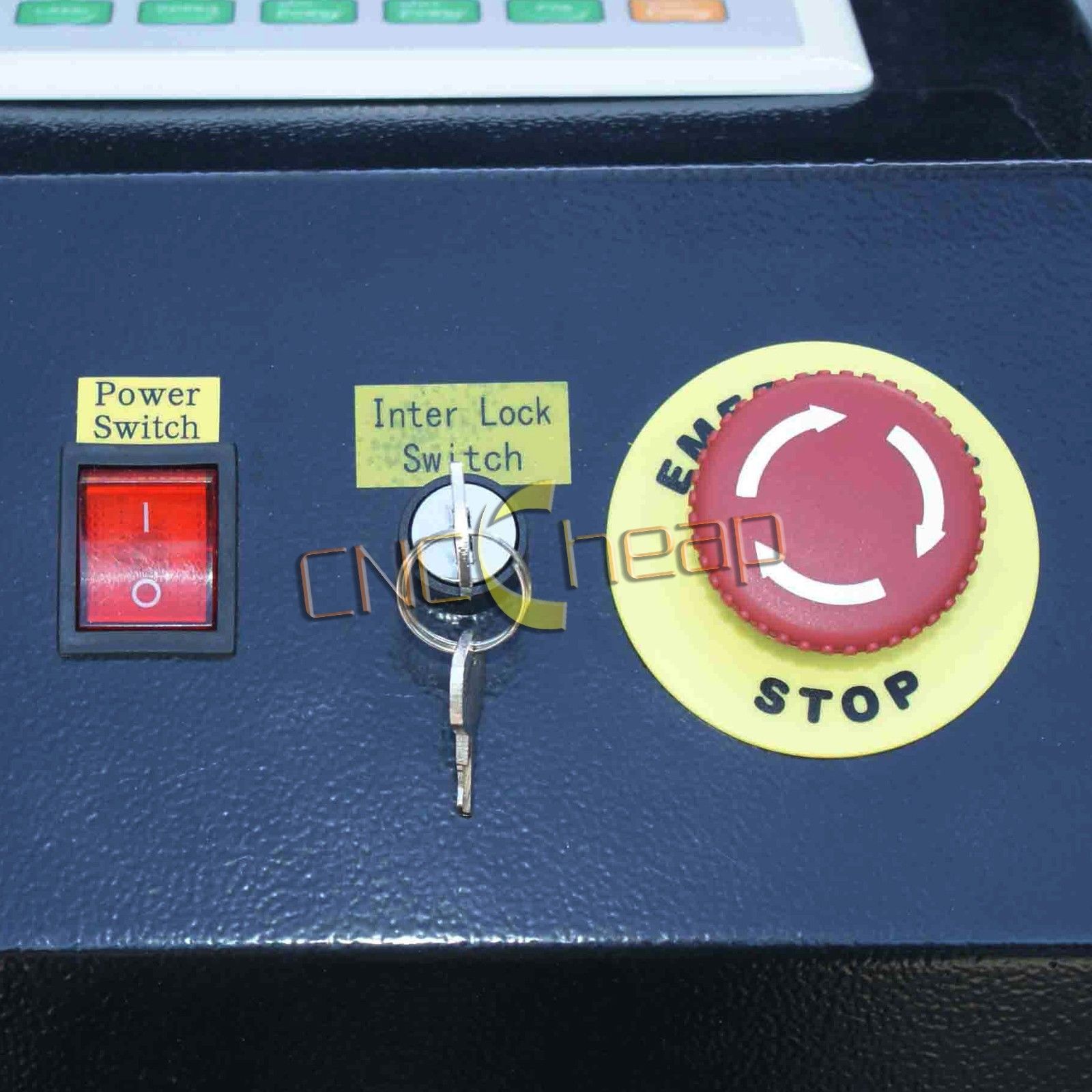

with USB, Laser Interlock System, No water Warning

You are buying a CO2 Laser engraving and cutting machine from a professional engineering company who are responsible for the design, manufacturing and after sales service of these machines.

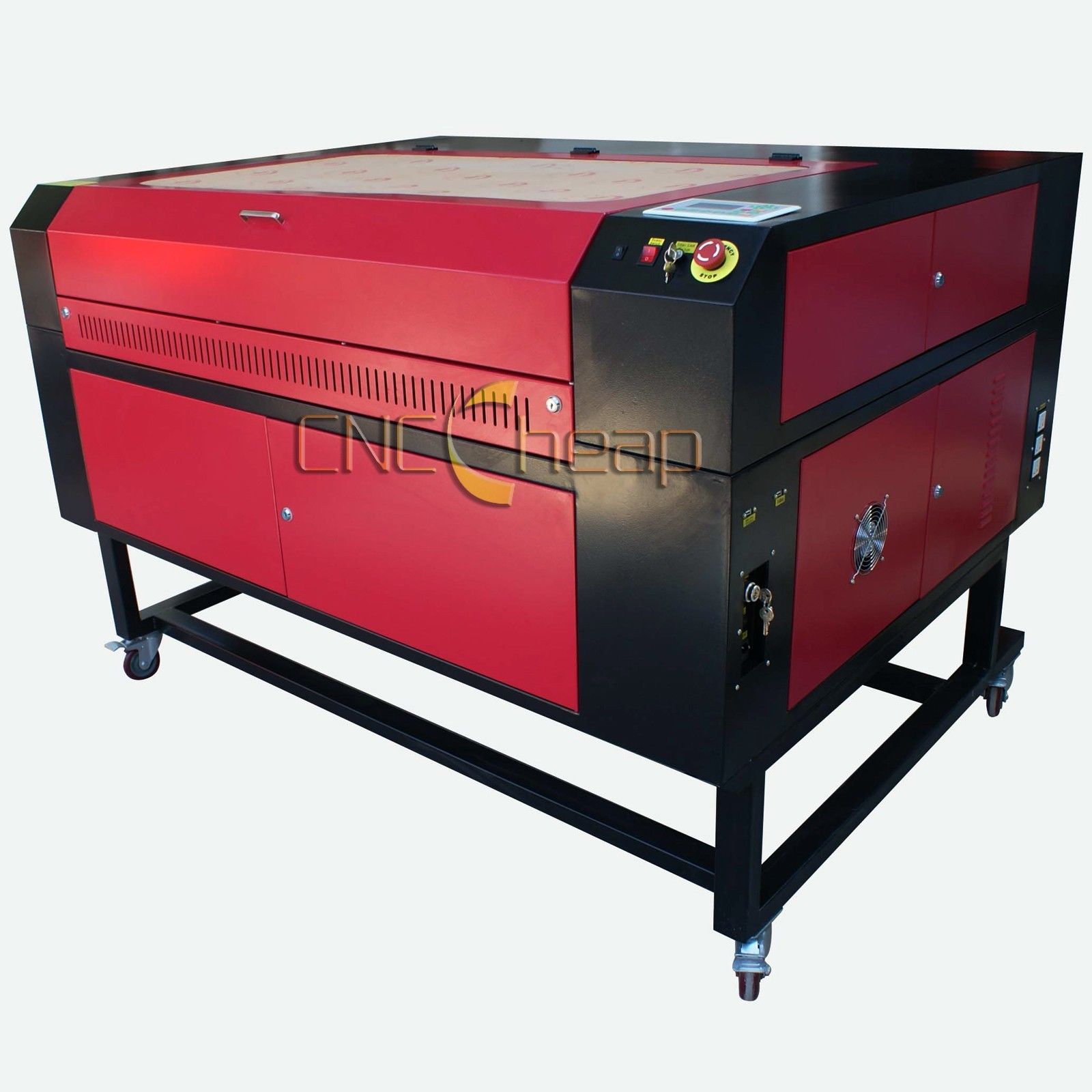

X1390 Laser Engraving Machine use the smart design, the frame of the machine can be split into 2 parts, so it is easy to be moved through the narrow door.

The outstanding feature is offline control system, Double open door, English LCD, USB interface, Water protection system, support CAD and CorelDraw output directly.

Control system: DSP

Working size: 51″x 35″(1300mm x 900mm) with double side open door

Laser tube type: Co2 Glass sealed laser tube

Laser power: Reci S2 100W

Driver type: Micro Stepping Motor

Max speed: 500mm/s

Resolution: 2500 DPI

Location precision: < 0.01mm

PC Interface: USB2.0 and USB Disk

Software: AutoLaser

Image form: HPGL, BMP, GIF, JPG, JPEG, DXF, DST, AI

Warranty: 12 Months (3 months for Laser tube and mirrors)

Machine Dimension(L/W/H): 1830*1310*1060 (mm)

Package Dimension(L/W/H): 1940*1790*1290 (mm)

Package: Standard Wooden case for export

N.W. : 380KG

G.W. : 450KG

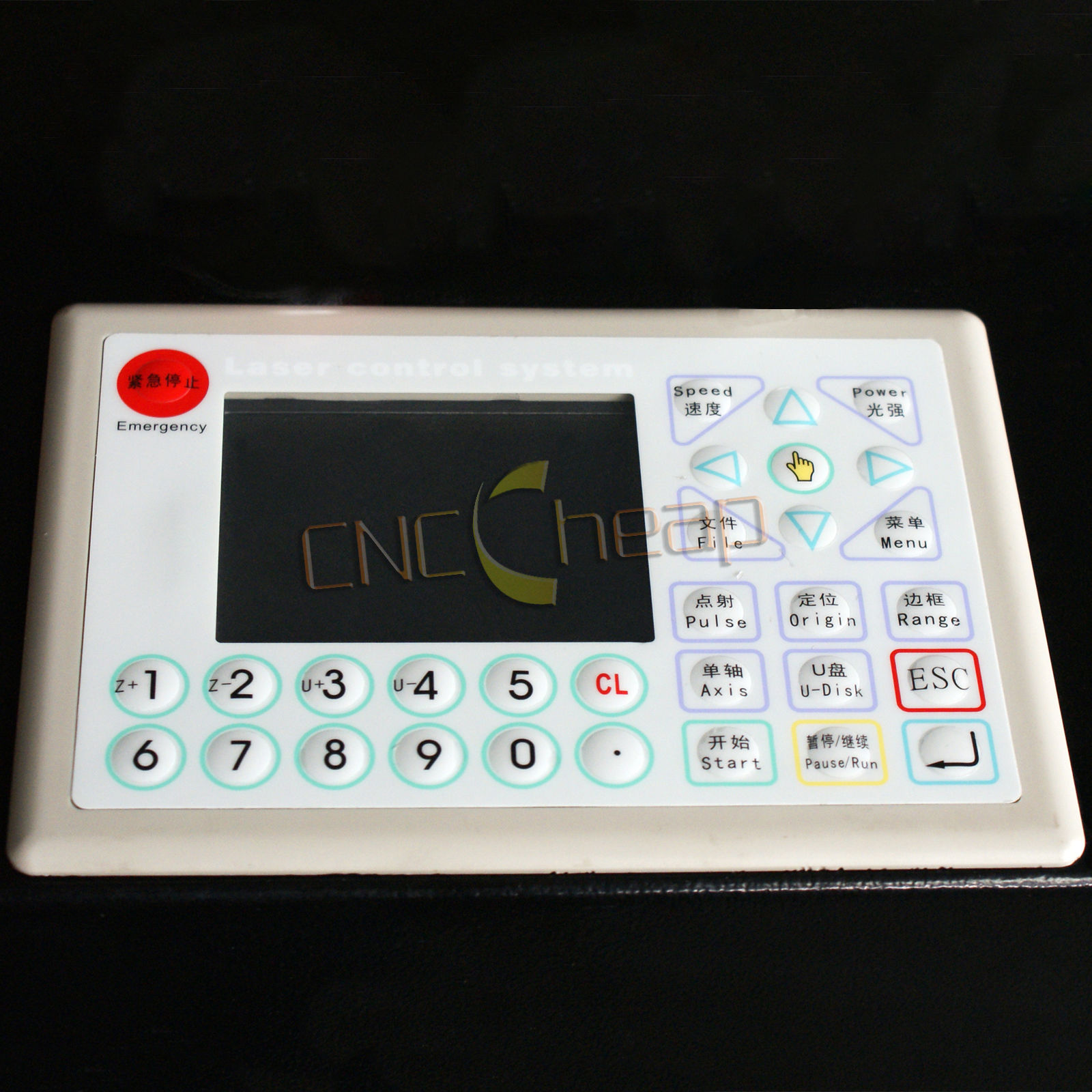

More friendly control panel with Color Screen

English, French, and more languages updating...

256 colors makes different working mode to meet complicated design

One key to install, more convenient. Output from Auto CAD directly

Output from CorelDRWA directly

CorelDRAW icon

The network connection with the IP address of machine.

Just one PC with 2/3/... units machines, Never a problem!

Processing of mutual motion of double heads Use virtual array list and additional off-cut graph to realize the off-cut function

Feeding Processing Machines with feeding devices can realize the cyclical model of working-feeding-working

Processing of large file segmentation When the length of the file to be processed is very large and exceeds the vertical dimension of the current machine, it can use the function of processing for large file segmentation if the machine has feeding function.

Separate head processing
