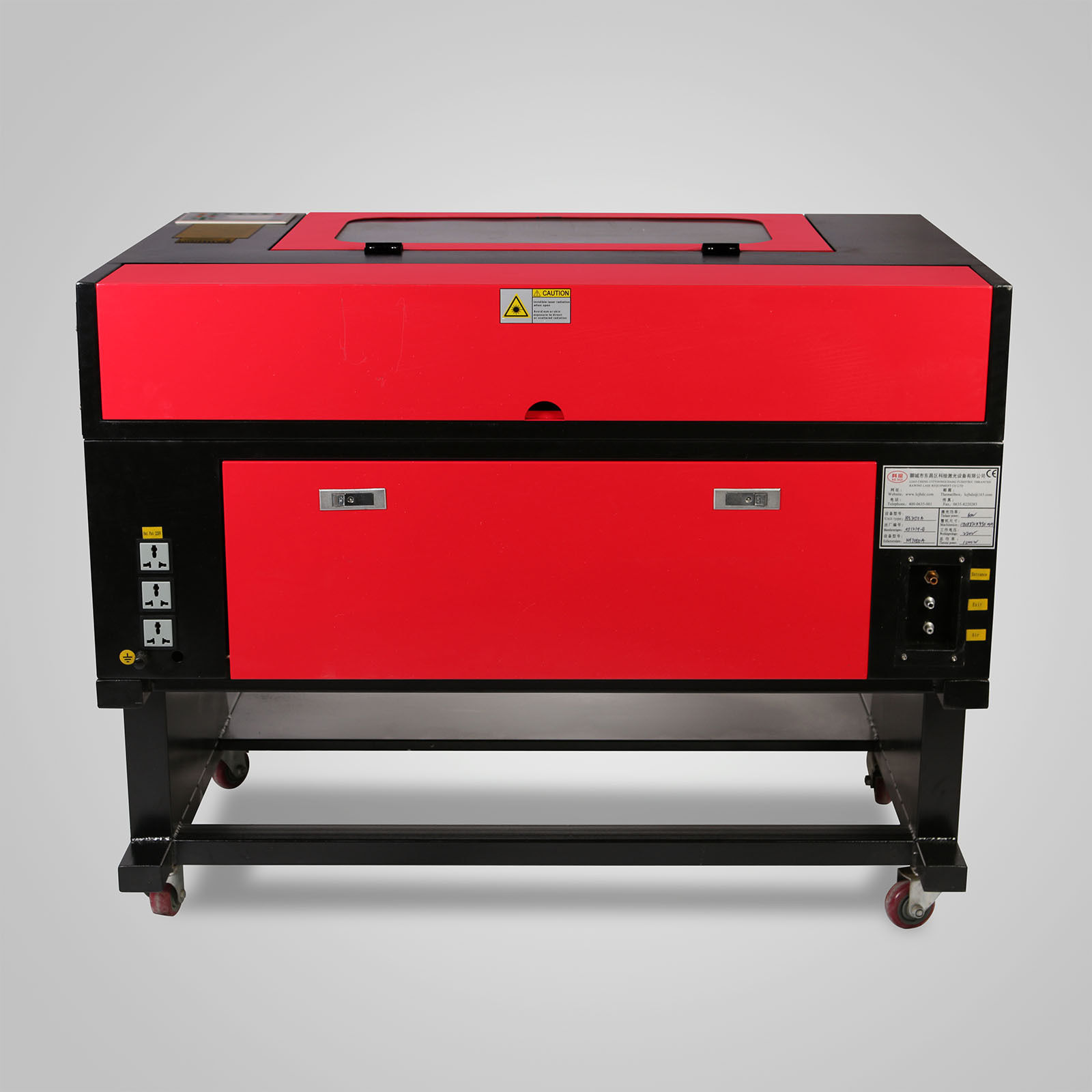

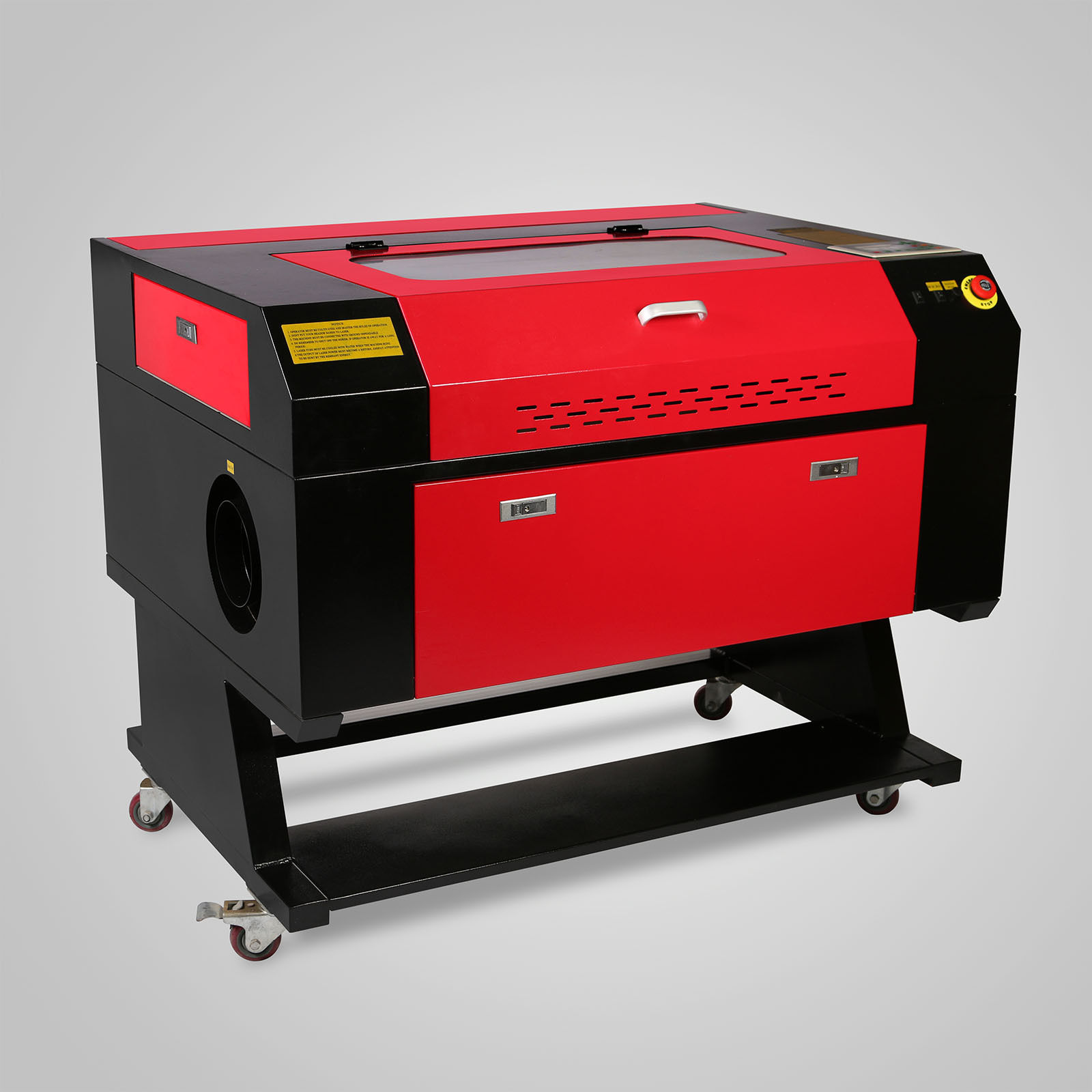

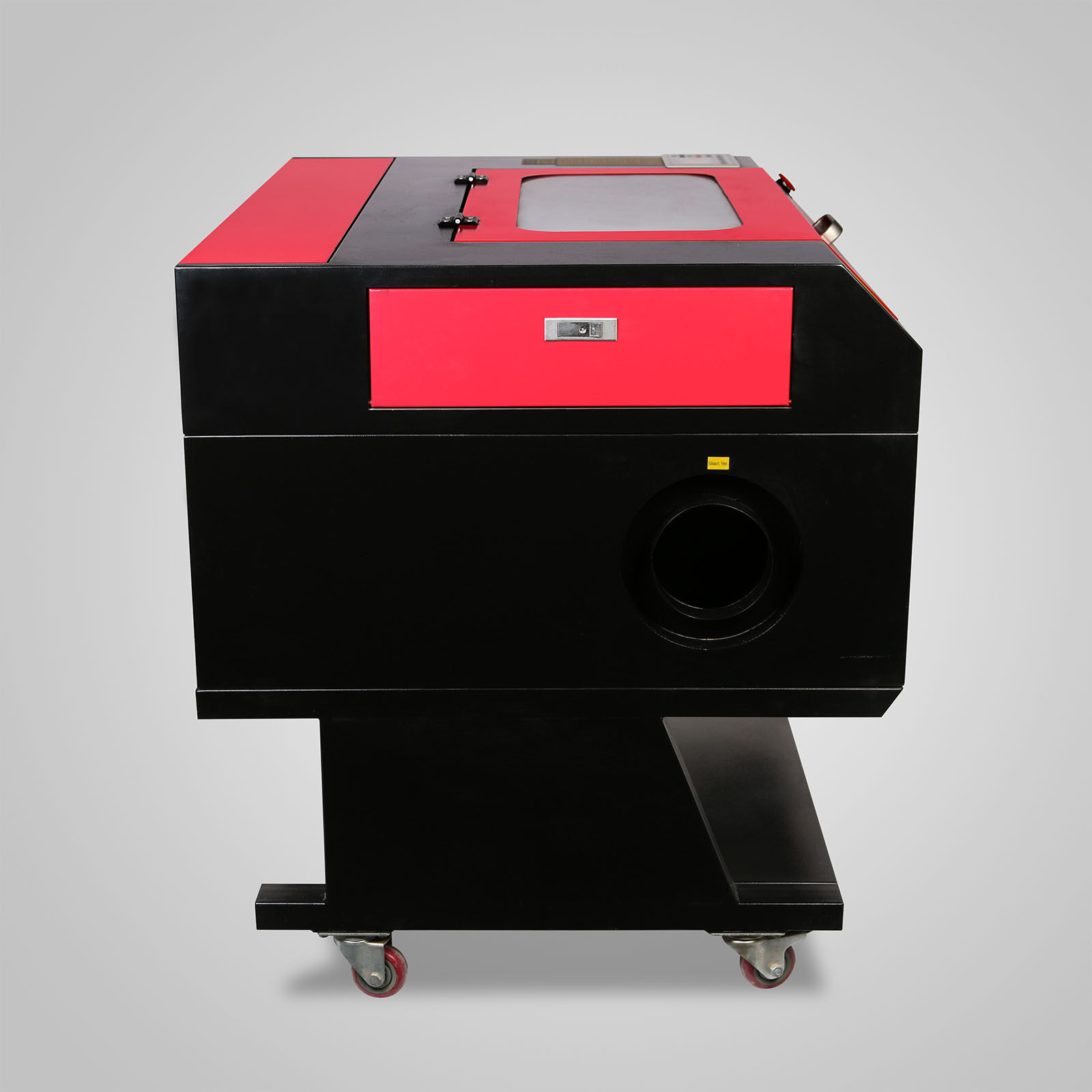

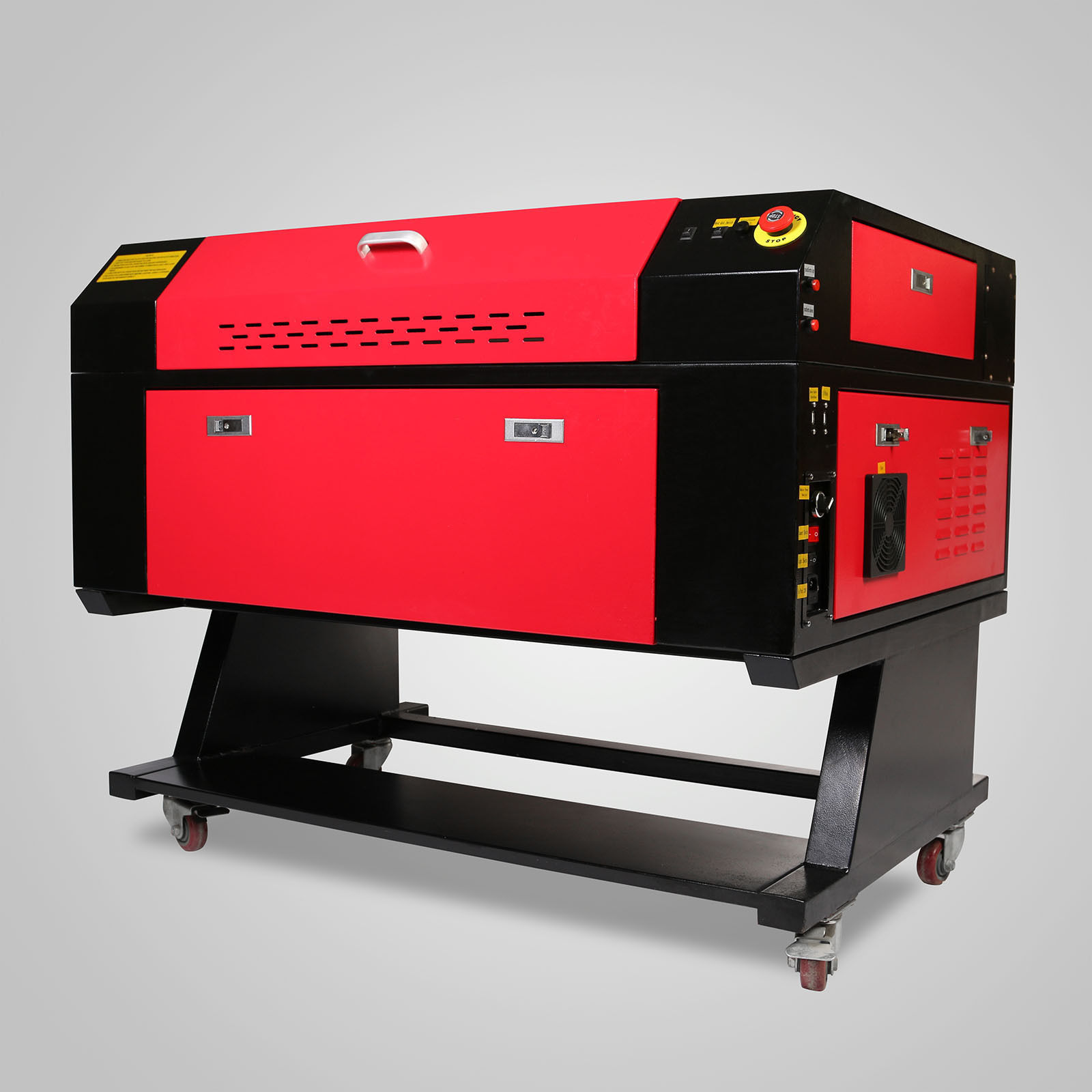

เครื่องแกะสลักด้วยแสงเรเซอร์ New System Laser Engraver/Engraving /Cutting Machine With Color Screen 700*500mm 60W CO2 Laser Tube With CE FDA

New System Laser Engraver/Engraving /Cutting Machine With Color Screen 700*500mm 60W CO2 Laser Tube With CE FDA

Description

New System Laser Engraver/Engraving /Cutting Machine With Color Screen 700*500mm 60W CO2 Laser Tube With CE FDA

New Laser Engraving and Cutting Machine. The machine is a kind of Laser Engraving Machine System equipped with CO2 laser Tube, it is used to engrave on wood, bamboo, plexiglass, crystal, leather, rubber, marble, ceramics and glass and etc.,engrave Painted Metals and Anodized aluminum are also OK. It is most suitable and the preferred choice of equipments in industries such as advertisement, gifts, shoes,toys and etc. It supports multiple graphic formats, such as HPGL, BMP, GIF, JPG, JPEG, DXF, DST, AI and so on. This machine is equipped with DSP Control System for CorelDraw/AutoCAD and other advance software. It must connect with computer with USB cable when you change the settings of machine for the design files,you can transfer the file with USB memory stick to the machine, or can download it to the machine directly with USB cable from computer. Even on the same Job, you can do setting with different colour in the software and also can making holes.And it can the legs separate from the main body of the machine. The machine has doors which can be opened to accommodate larger materials.

Applicable Material:

Wood,bamboo,jade,marble,organic glass, crystal, plastic, garments, paper, leather, penelope, rubber, ceramic, glass, textile cutting, industrial prototyping, industrial marking, signmaking, medical part marking, aerospace, architectural modeling, specialty advertising, plastics fabricating, flexo, point of purchase, rubber stamps, picture framing, gift manufacturing, bar coding, engraving, gasket cutting, puzzles, cabinetry, awards & recognition, personalized pens, door pulls, cut scroll patterns, games & toys, finger joints, inlays & overlays, fraternity paddles, music boxes, light switch plates, jewelry boxes, parts marking, router templates, desk sets, scrap booking, photo albums, jewelry, crafts, Italian charms.

Applicable Industry:

Advertisement,arts and crafts, leather, toys, garments, model, building upholster, computerized embroidery and clipping,packaging and paper industry.

Features:

FDA,CE Certification, ISO9001 Quality Certification.

Smooth and Precise Engraving and Cutting.

Output from CorelDRWA directly.

Optimization of mechanical and electrical design.

More friendly control panel with Color Screen.

English, French, and more languages updating.

Separation of cutting up to 256 Colors.

One key to install, more convenient. Output from Auto CAD directly.

Use virtual array list and additional off-cut graph to realize the off-cut function.

Machines with feeding devices can realize the cyclical model of working-feeding-working.

USB Interface, U-Flash Disk Supported,Machine will read files from memory stick,you can work even without a PC.

Air Assist, Remove heat and combustible gases from the cutting surface and make the engraving and cutting projects a breeze.

Adopt advanced DSP digital control system, international standard laser power supply,integrated framework style

2 years free warranty and life time free maintenance service.

Item Specifications

Control system:DSP

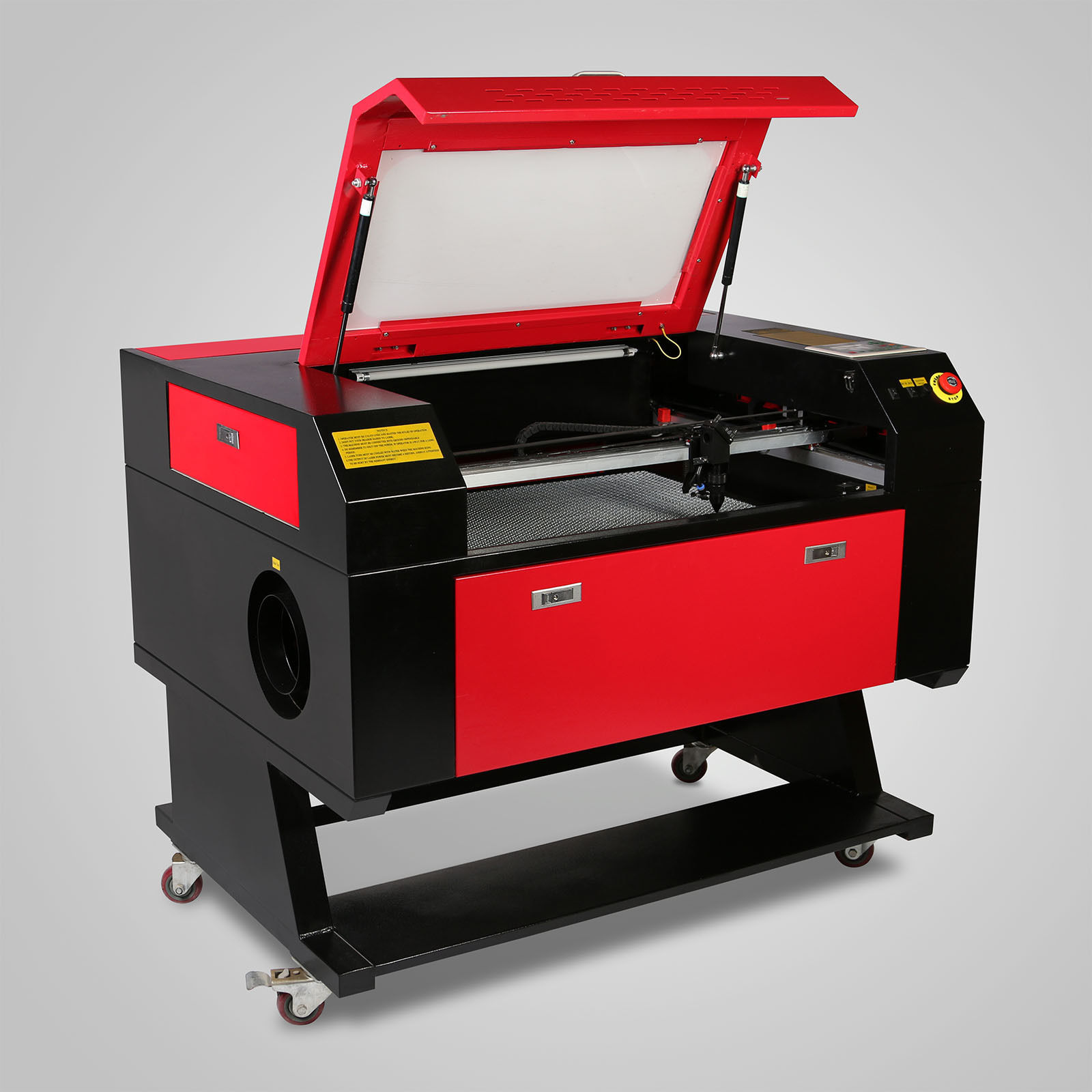

Working size: 20"x28"(500mm x 700mm) with double side open door

Up and down work plate: 7.8" (200mm)

Laser tube type: Co2 Glass sealed laser tube

Laser power: 60W

Driver type: Micro Stepping Motor

Max speed: 500 mm/s

Resolution: 1000 DPI Location precision: 0.01mm

PC Interface: USB2.0 and USB Disk

Software: AutoLaser

Image form: HPGL, BMP, GIF, JPG, JPEG, DXF, DST, AI

Machine Dimension(L/W/H): 1150*860*970(mm)

Package Dimension(L/W/H): 1700* 1000*1200 (mm)

Package: Standard Wooden case for export

N.W.: 125KG

G.W.: 185KG

Package Content

1 X Main Body

1 X Air exhaust fan

1 X Air Pump

1 X Communication cable

3 X Reflect optics (installed in the machine)

1 X Focus optics (installed in the machine)

1 X Laser tube Other tools

1 X User Manual (CD)
