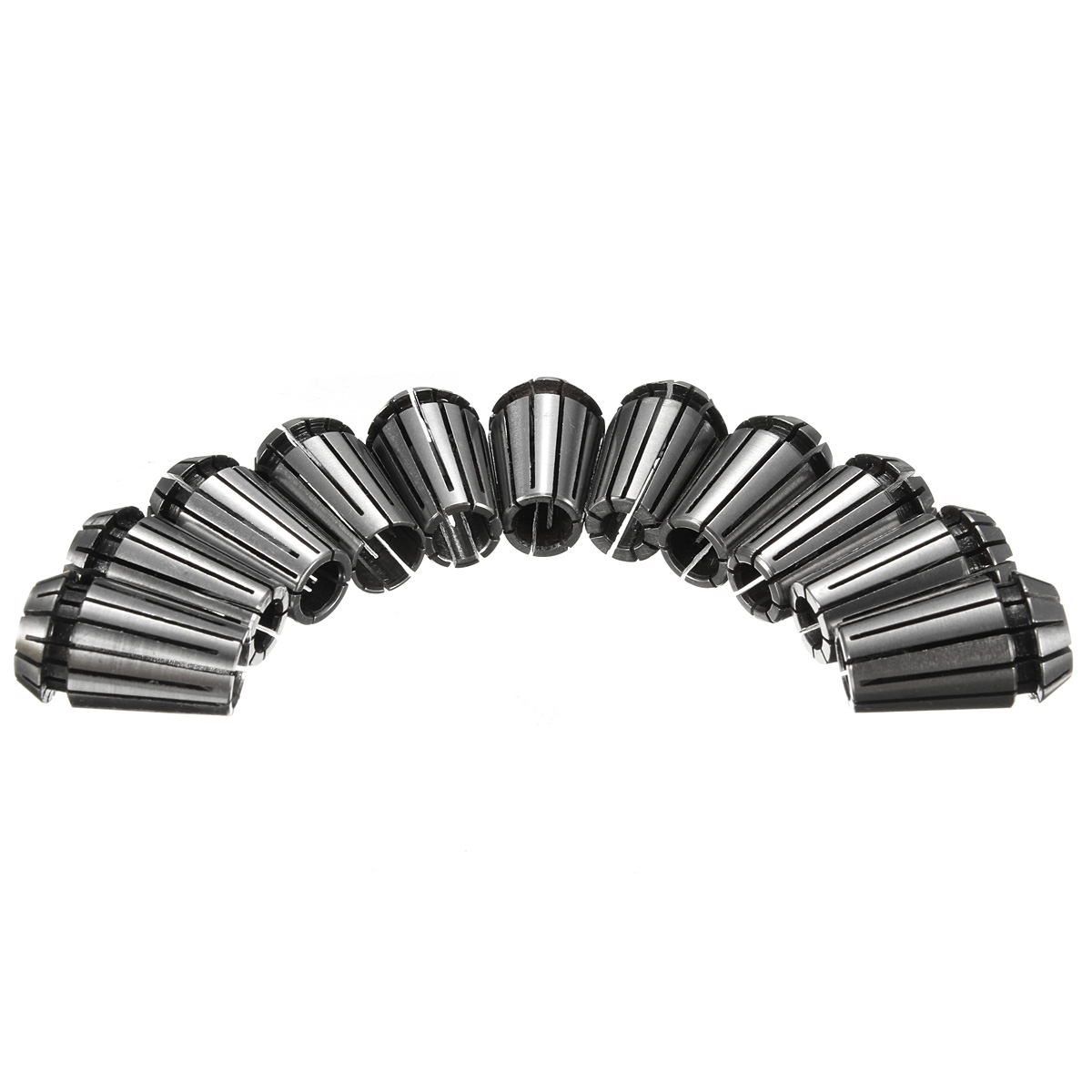

ชุดหัวคลอเลต ER16 11 ชิ้น 11Pcs Full ER16 Precision Spring Collet Set CNC Milling Lathe Tool & Workholding

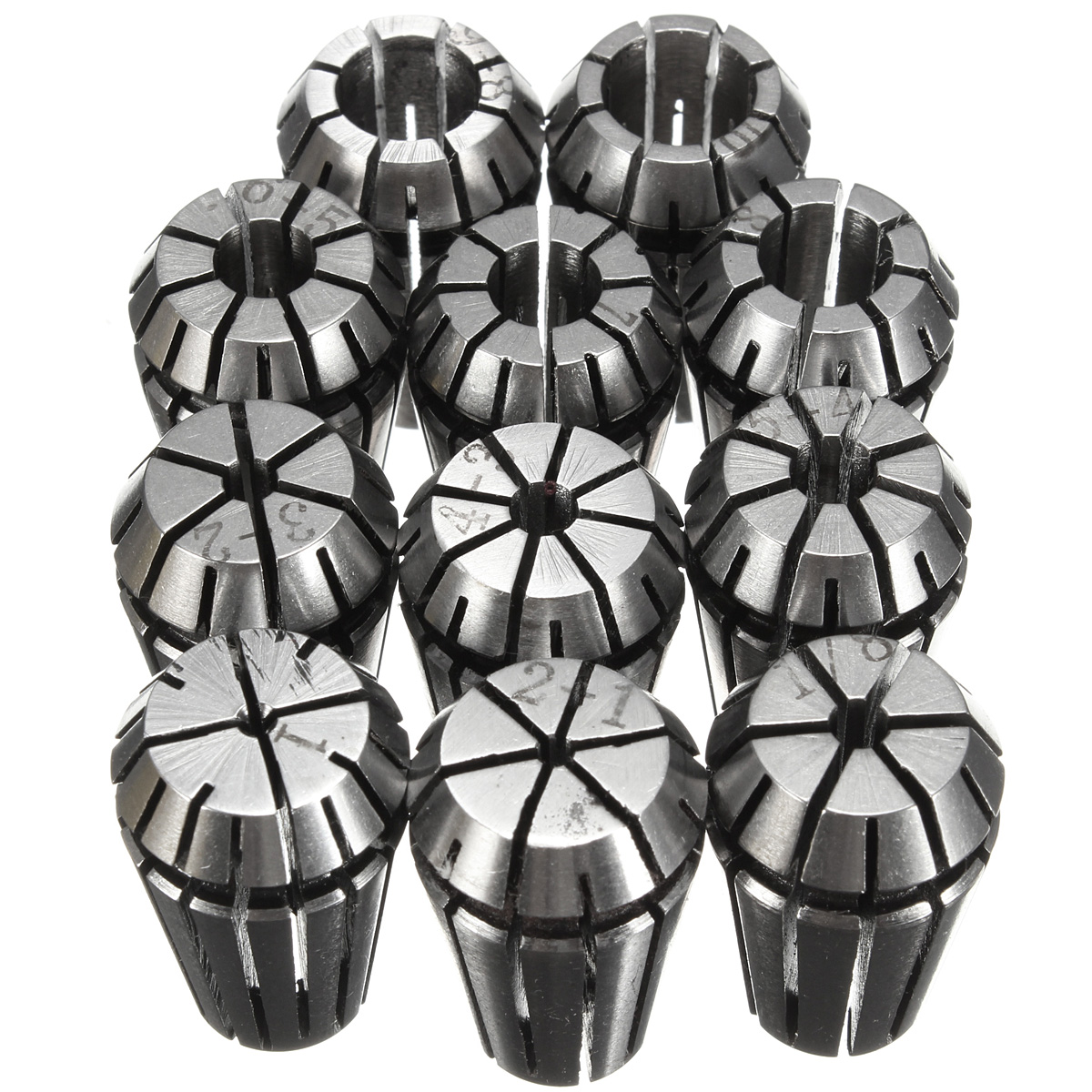

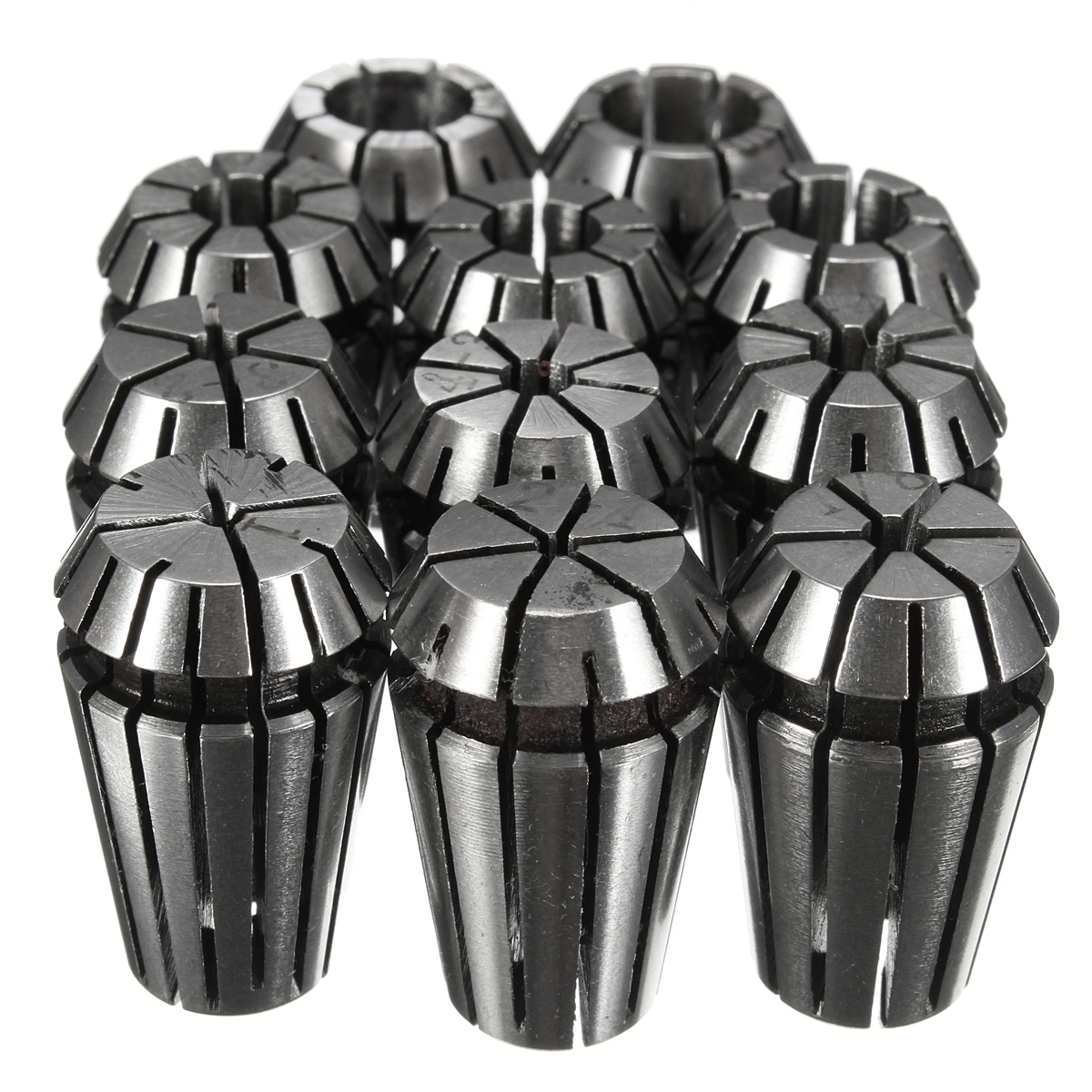

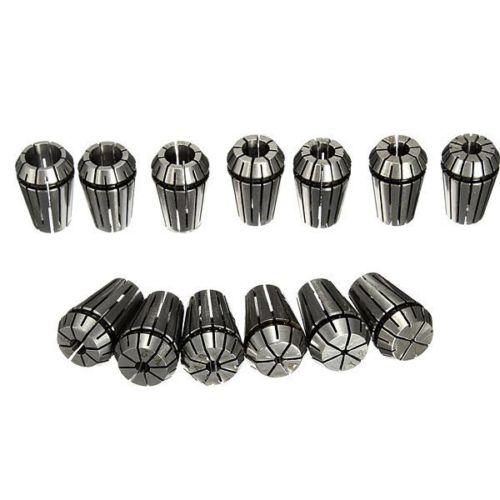

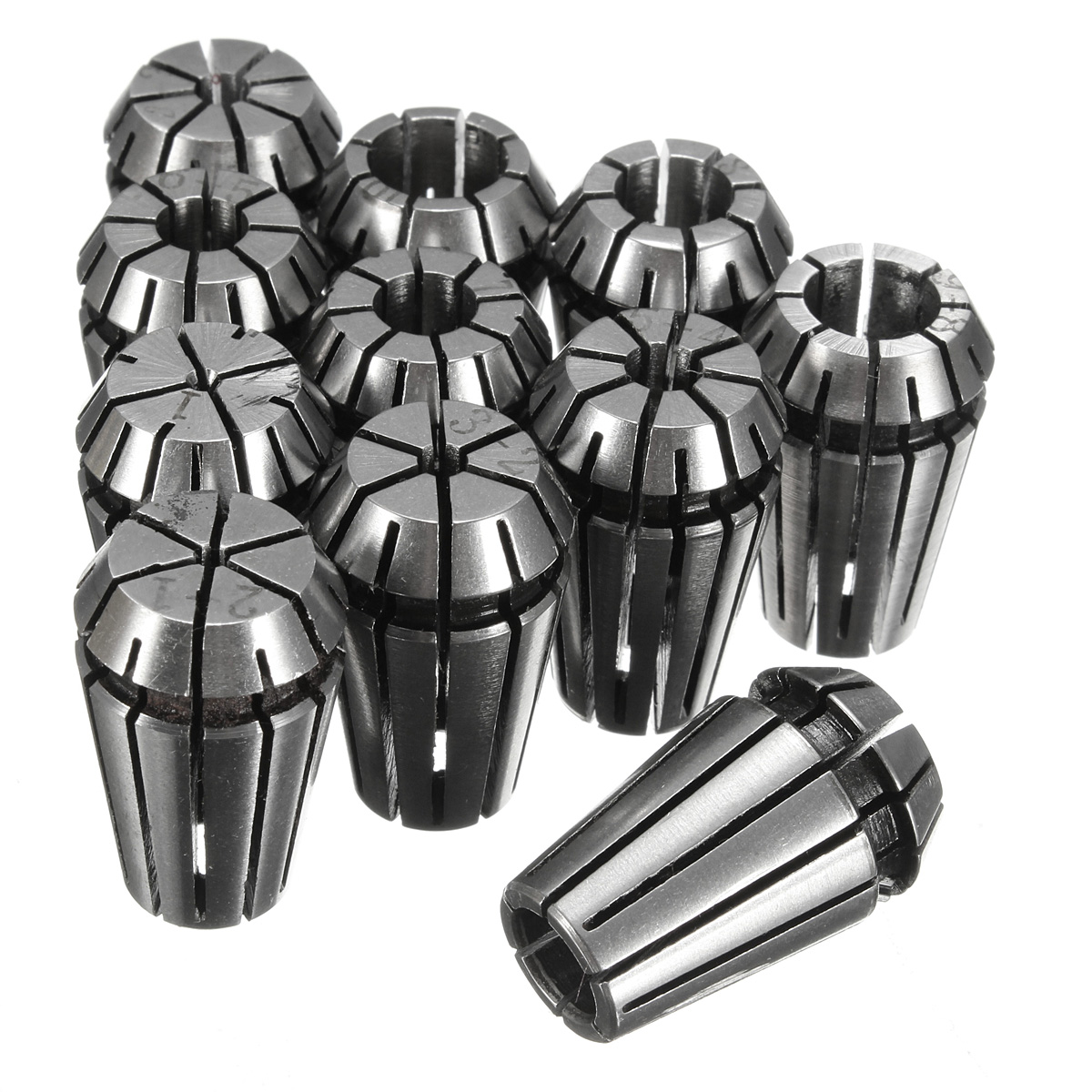

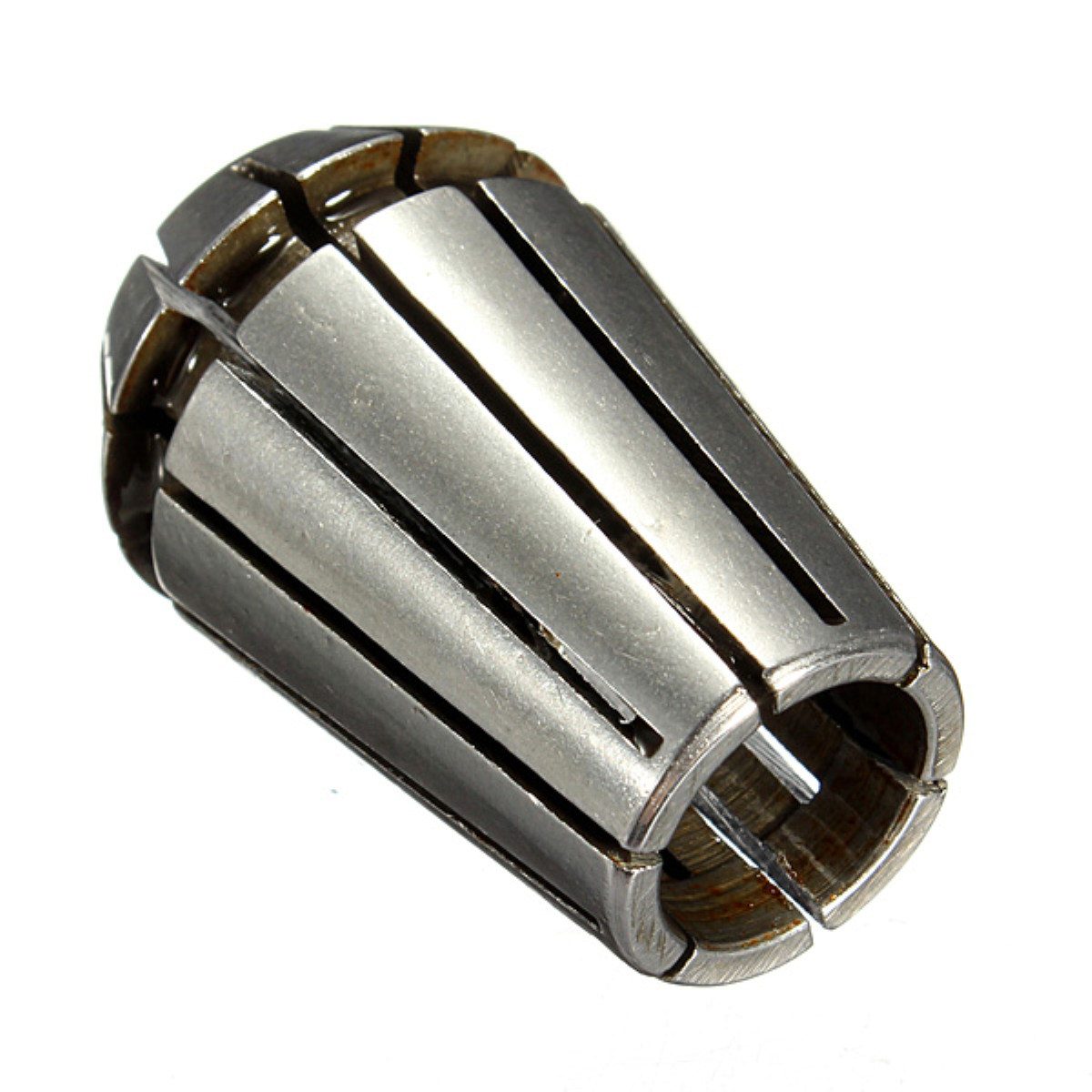

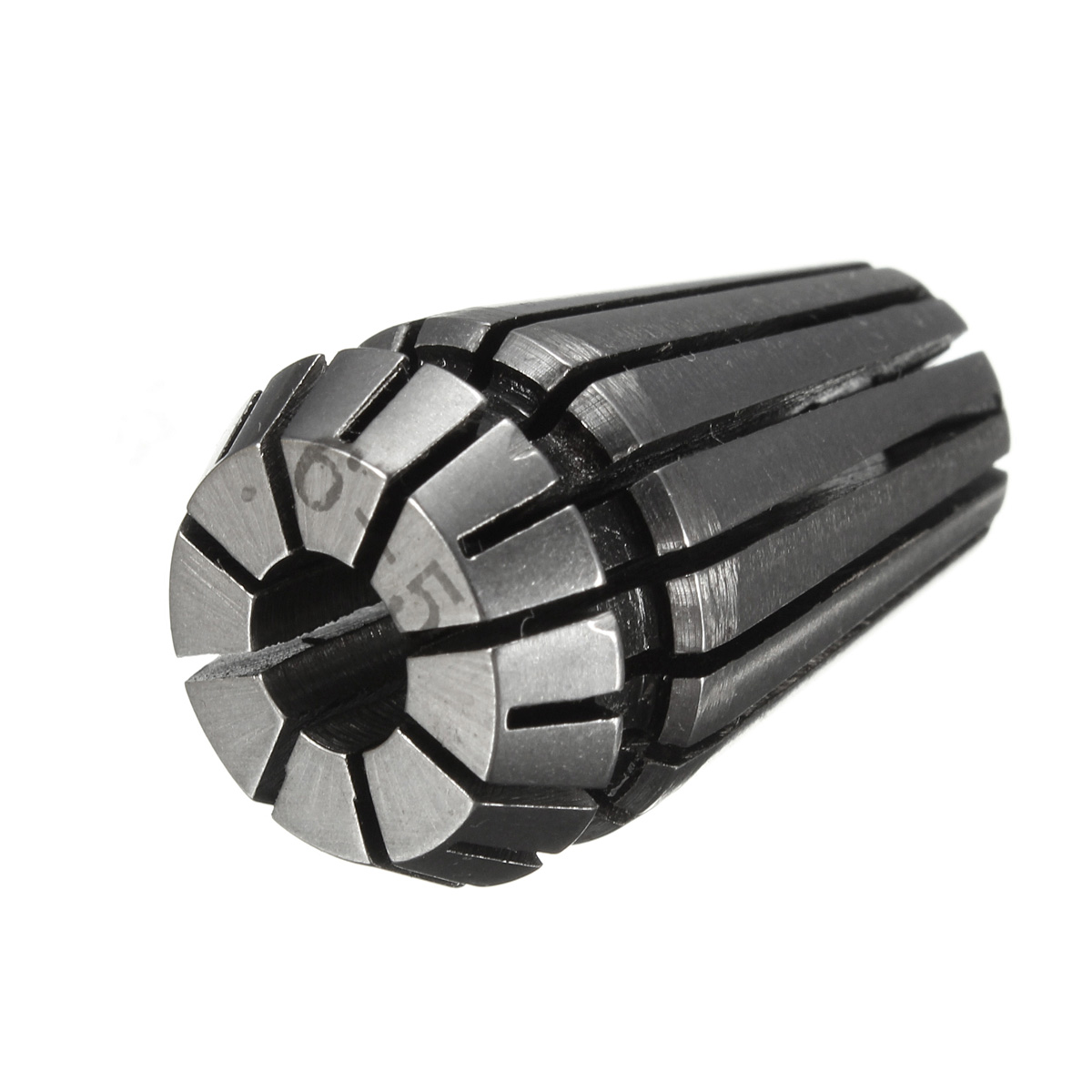

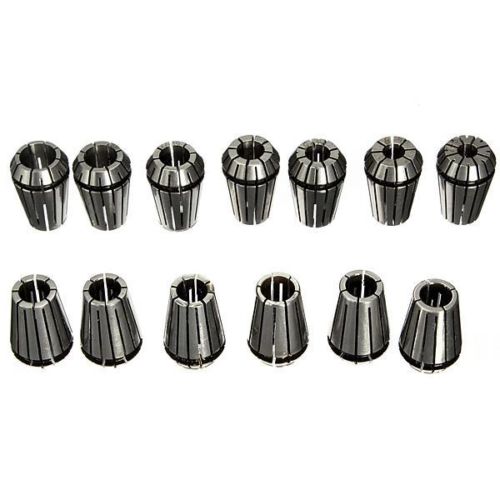

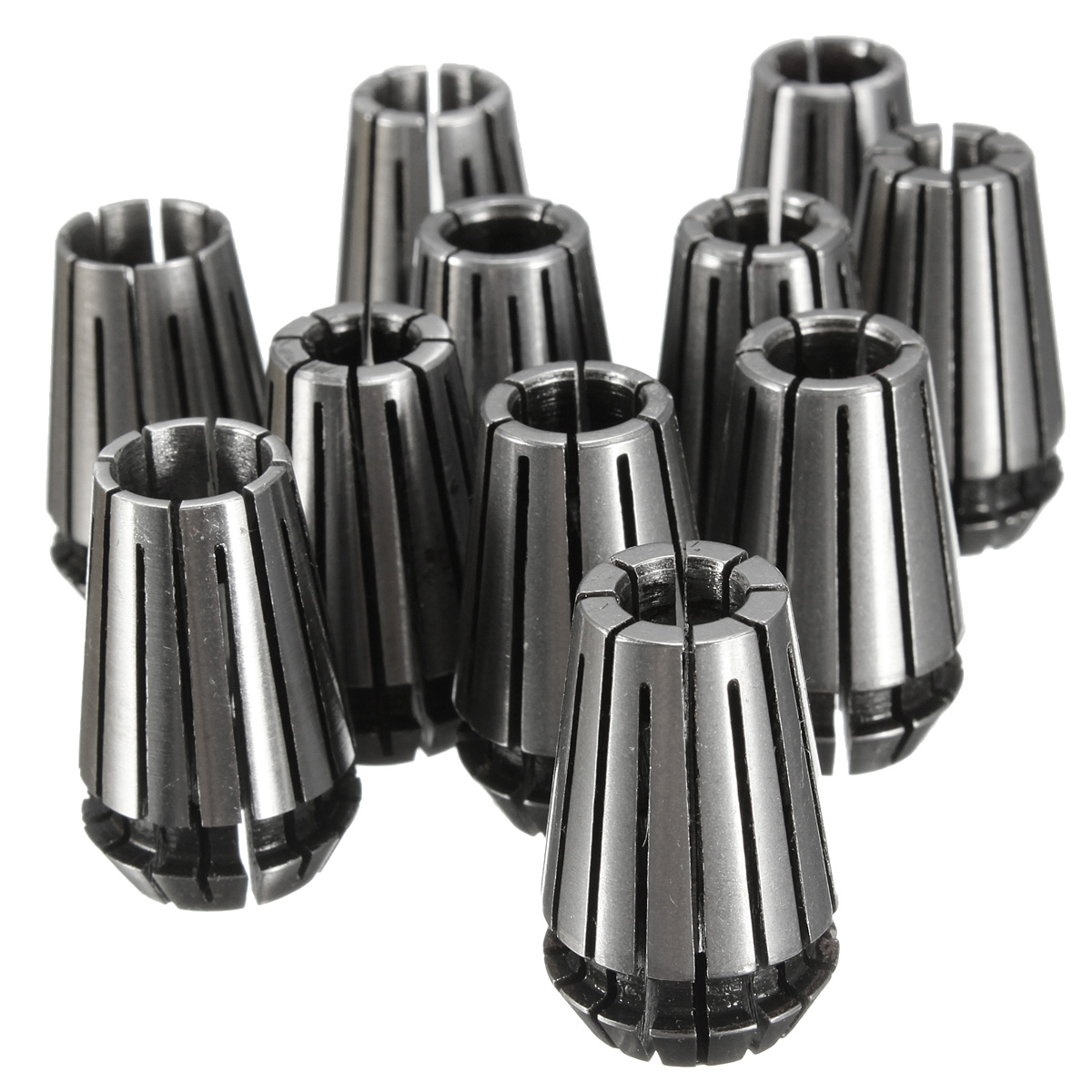

11Pcs Full ER16 Precision Spring Collet Set CNC Milling Lathe Tool & Workholding

Model 1/8mm*1mm*2mm*3mm*4mm*5mm*6mm*7mm*8mm*9mm*10mm

Features:

Select high-quality carbon steel.

Hardened & precision ground. Big clamping  force and  wide clamping range , widely used in machining centers, general milling machines, CNC milling machine, engraving machine, high-speed machines, and other processing. (with ER16 nut and supporting the use.)

Specification:

Type: Machine Tool Accessories

Brand: Collet chuck

Applicable machine: CNC machine

Accuracy: 0.008mm

Model:  ER16 (11pcs,1/8mm-10mm)

(1/8mm, 1mm, 2mm, 3mm, 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm)

The correct method of mounting the collet nut:

1, Put the chuck into the pressurecap, gently turn the clamp spring, when eccentric portion of the pressure cap recessed clamp spring groove. Along the arrow direction and use equal force to push clamp spring, can mount pressure cap.

2, Put the clamp spring and cap all together installed on the chuck body or spindle. Insert into the clamping hole after wipe the cylindrical shank, use a wrench to tighten the pressure cap, until clip firmly the tool before use .

(Note: Avoid fastening pressure cap that not installed tool, to avoid damage the clamp spring)

3,Use a wrench to loosen the pressure cap and took out the chuck or tool, remove the tool. Along the direction of the arrow push out the clamp spring. Then according to need replace other clamp spring.

Package include

11pcs Full ER16  Precision Spring Collet
