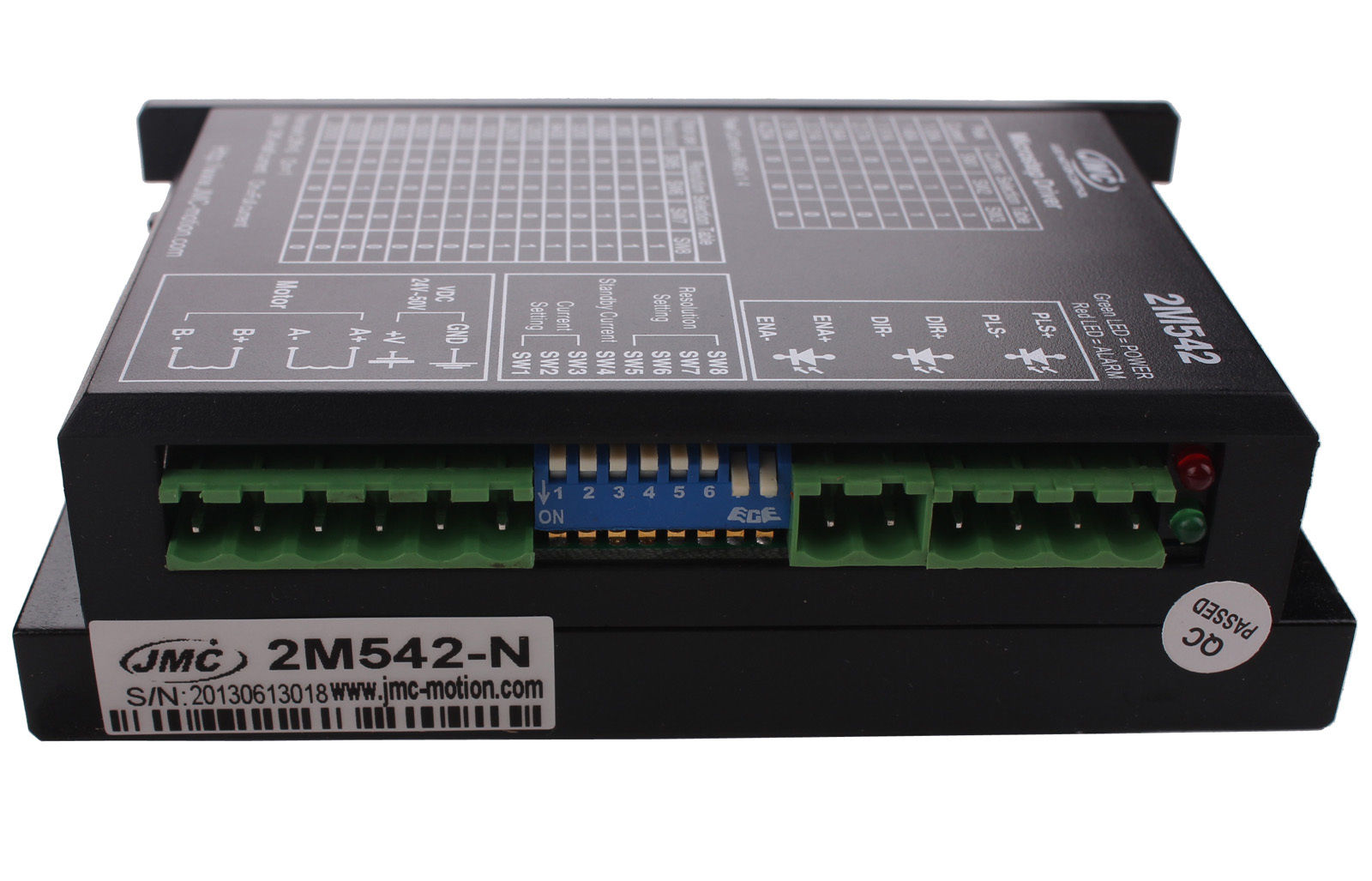

2M542 Stepper Motor Driver Description

The 2M542, a microstep driver with constant torque and angle subdivision, is particularly suitable for application with low cost on large scale and has a great deal of hightlight such as that the driven motors can run with smaller noise, lower heating, smoother movement and have better performance at higher speed

Specifications:

• Suitable for 2-phase hybrid stepper motors (Outer diameter: 57,86mm)
• High performance and cost-effective
• 8 dial switch for different functions
• H bridge bipolar constant phase flow subdivision driver
• Speed self-adjustment technology
• Easy current subdivision setting
• 2--64 resolutions,16 operation modes
• ENA mode
• Undervoltage, Shortvoltage, overvoltage, overcurrent protections

Technical Parameter:

• Model: 2M542
• Supply Voltage: 24~50V DC (Typical 36 V)
• Output Current (peak): Min 1.0 A, max 4.2A
• Logic Input Current: Min 7, typical10, max 16 mA
• Pulse Frequency: Max 200 KHz
• Pulse Low Level of Time: 2.5 US
• Cooling: Natural /mandatory
• Working Surrounding: Avoid dust, oil mist and corrosive gas
• Storage Temp: -10---80 deg
• Working Temp: Max 65 deg
• Surrounding Humidity: <80%RH without condensing and frost
• Vibration: 5.9m/s²
• Size: 8 x 3 x 1 5(cm)

Electrical Specifications:

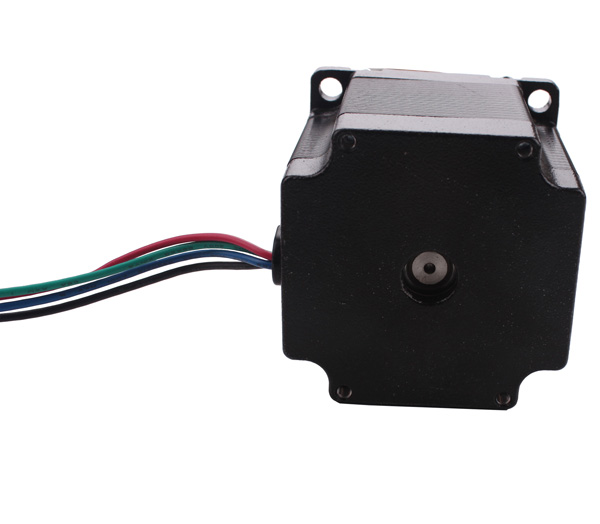

57BYGH56-401A Stepper Motor Description

• Step Angle Accuracy: +-5%(full step, no load)
• Resistance Accuracy: +-10%- Inductance Accuracy: +-20%
• Temperature Rise: 80 Degrees Celsius CMax.(ratod current,2 phase on)- Ambient Temperature: -10°C-+50°C
• Insulation Class: B
• Dielectric Strength: 500V AC for one minute
• Shaft Radial Play: 0.06Max.(450g-load)
• Shaft Axial Play: 0.08Max.(450 9-load)
