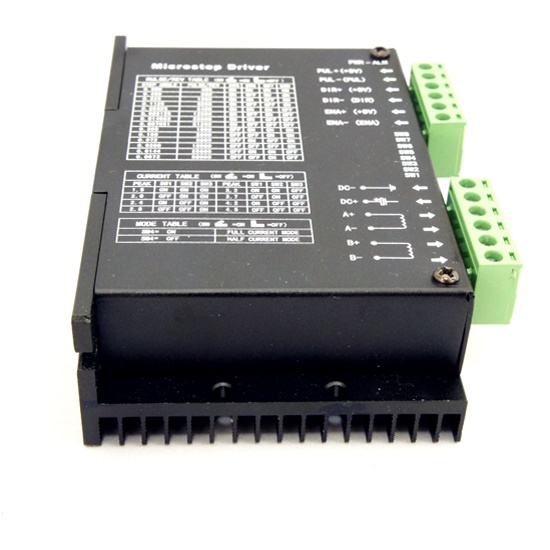

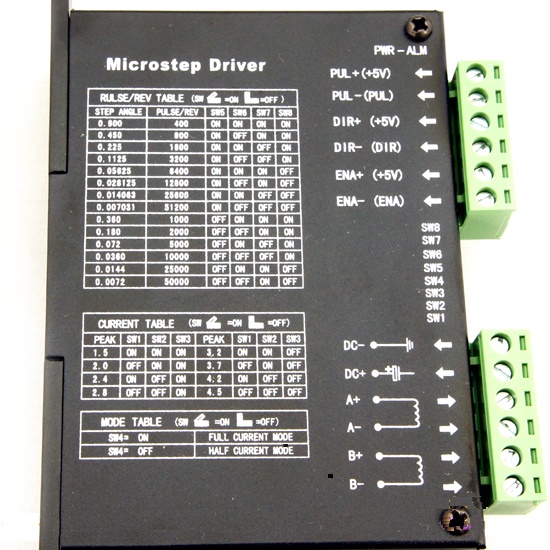

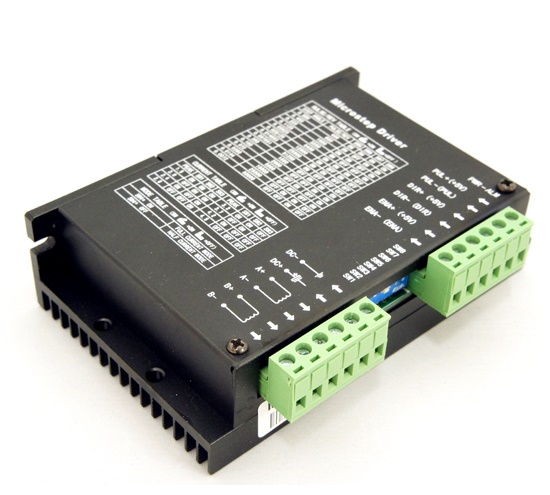

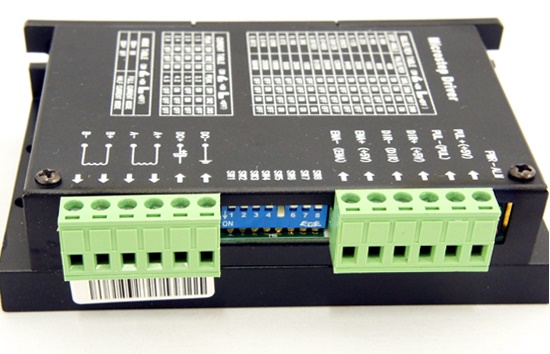

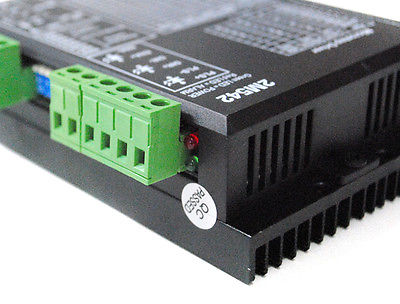

กล่องควบคุมสเตปปิ่งมอเตอร์ CNC Stepper Motor Driver 2M542 DC24-50V 4.2A Controller

Product Description

- 100% Brand New CNC NEMA23 Stepper Motor Driver 2M542 4.2A Controller

- The 2M542 is a high performance micro stepping drive based on pure-sinusoidal current control technology. Owing to the above technology and the self-adjustment technology (self-adjust current control parameters) according to different motors, the driven motors can run with smaller noise, lower heating, smoother movement and have better performances at higher speed than most of the drives in the markets. It is suitable for driving 2-phase hybrid stepping motors.

Features

- High performance, cost-effective

- Supply voltage up to +50 VDC

- Output current up to 4.2A

- Self-adjustment technology

- Pure-sinusoidal current control technology

- Pulse input frequency up to 200 KHz

- TTL compatible and optically isolated input

- Automatic idle-current reduction

- 15 selectable resolutions in decimal and binary, up to 25,000 steps/rev

- Suitable for 2-phase motors

- Support PUL/DIR and CW/CCW modes

- Short-voltage, over-voltage, over-current protections

Applications

- Suitable for a wide range of stepping motors, from NEMA size 17 to 23. It can be used in various kinds of machines, such as X-Y tables, engraving machines, labeling machines, laser cutters, pick-place devices, and so on. Particularly adapt to the applications desired with low noise, low heating, high speed and high precision.

Package Includes

- 1 x CNC NEMA23 Stepper Motor Driver 2M542 4.2A Controller
