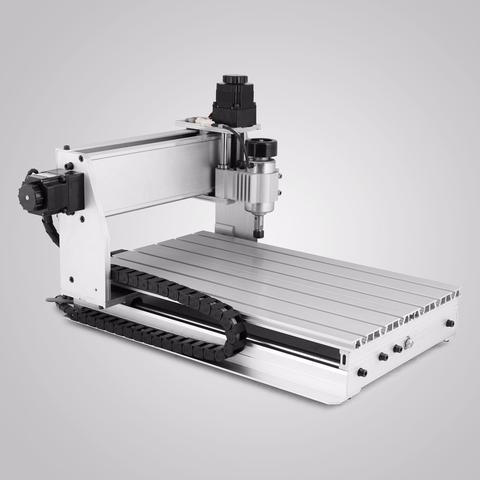

Mini CNC 3020FS 3 Axis ชิ้นงาน X 200mm Y300 mm Z 45 mm 4 แกน Spindle 500W

1. 230W DC spindle
2.Feed Screw good precision
3. Mini size with 300×200mm work area
4. Steady and strong equiped with aluminum alloy frame materials
5. Mach 3 software is simple and intelligent,Can be controlled by computer
6. Emergency stop button enhance security
7. Spindle motor knob is useful for small positioning adjustment ,with steady and strong support structure.
8. Chrome shafts is not easy to deform, suitable for long time use.
9. For hobby and research use
10. Cheap and affordable cnc router
11. 110V/220V available

Technical details for this Cheap Affordable Mini CNC 3020/ CNC 3020T-DJ Router Engraver
Effective working travel 300(X)mm*200(Y)mm*45(Z)mm
Shape dimension 500*400*370mm
Max.workpiece dimension 300*200mm
Work table dimension 440*270mm
Frame materials aluminum alloy 6063 and 6061 the unique and dedicated mold extrusion profiles. let counterfeiters dwarfs
acceptable material thickness ≤60mm
Driving units X axis 1204 Double thread Trapezoidal Screw
Y axis 1204 Double thread Trapezoidal Screw
Z axis 1204 Double thread Trapezoidal Screw
Sliding units X axis Dia.16mm chrome plate shafts
Y axis Dia.20mm chrome plate shafts
Z axis Dia.13mm chrome plate shafts
Stepping motor type 57 two-phase 1.8A

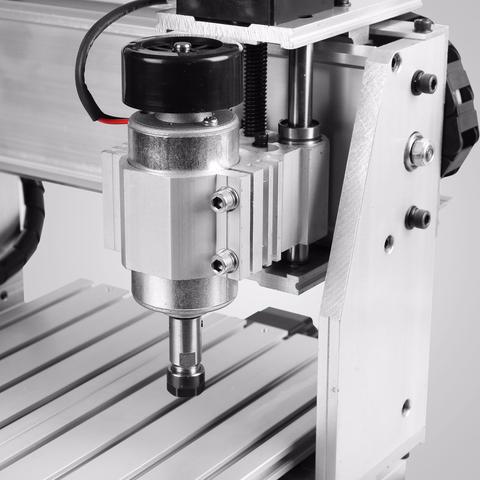

Spindle motor Brand new 230w dc motor 1000~8000PRM/Min
Principal axis collet ER11/3.175 mm/6mm
Repeat accuracy 0.05mm
Spindle precision radial beat acuities 0.03 mm
Carving Instructions G code/TAB files/nc file/NCC files
Communication interface through parallel connection with computer
Software environment Windows xp
Maximum speed 0-4000mm/min
Carving speed 300-2500mm/min (different materials differ)
Control unit Toroidal transformer + PWM power supply module + TB6560 3axis drive board
Computer connection on board palrallel port
Command code G code
Acceptable software Mach3
Protection Emergency stop button
Operating Voltage AC110V/AC220V

Packing list for this Mini CNC 3020/ CNC 3020T-DJ Router Engraver
1x CNC 3020/ CNC 3020T machine body

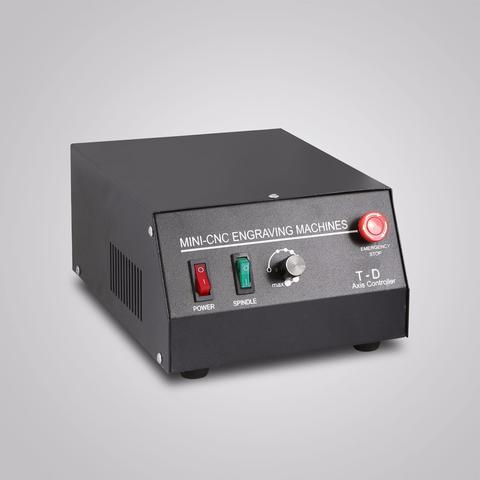

1x Control box
1x Parallel port cable 25pin
2x Power cable
1x Tool box and tools
3x Axis motors
1x CD of manual and software MACH3
Packing: 1pc carton box (22kg)
